Powerful Hydraulic Breaker Hammer Rock Drill Machine For Komatsu
Excavator
Description
1. JISAN hydraulic breakers including three types: side type, top
type and box-silence type
2. Made of high strength and wear resistance steel plate, long
durability
3. Adopted the most advanced Doosan equipment and experienced
engineer from South Korea to guarantee the quality
4. Suit for all brand of excavators and backhoe loaders
5. Supplied with all necessary spare parts including hydraulic
hoses , tool, N2 gas charging kit etc,ready to use
6. Easy-control and easy-position make it more convenient for
breaking work
Specification
| Model | Weight (Kg) | Length (Mm) | Pressure (kg/cm2) | Flux (L/Min) | Rate (Bpm) | Hose (Inch) | Chisel (Mm) | Suit (Ton) |
| JSB200S | 90/110 | 1100 | 90-120 | 15-25 | 700-1200 | 1/2 | 45/53 | 1.2-3.0 |
| JSB400S | 254 | 1347 | 110-140 | 25-45 | 500-900 | 1/2 | 68/70 | 3.0-5.5 |
| JSB600S | 380 | 1528 | 110-160 | 30-45 | 500-800 | 1/2 | 75 | 4.0-7.0 |
| JSB800S | 510 | 1920 | 120-170 | 45-85 | 400-700 | 3/4 | 85 | 7.0-14 |
| JSB900S | 765 | 2260 | 150-170 | 80-120 | 400-700 | 3/4 | 100 | 11-16 |
| JSB1600S | 1668 | 2695 | 160-180 | 120-160 | 400-700 | 1 | 135 | 19-26 |

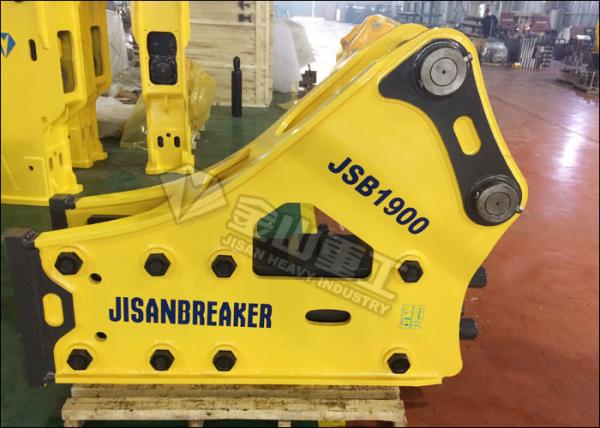

| JSB1900S | 1805 | 2810 | 160-180 | 130-170 | 400-600 | 1 | 140 | 19-26 |
| JSB2800S | 2228 | 2895 | 160-180 | 150-190 | 350-500 | 1 | 150 | 27-38 |
| JSB3500S | 2580 | 3152 | 160-180 | 170-220 | 250-400 | 1 | 155 | 28-40 |
| JSB4500S | 2755 | 3310 | 160-180 | 200-300 | 250-350 | 1.25 | 165 | 36-45 |
| JSB5000S | 3910 | 3400 | 160-180 | 210-290 | 200-350 | 1.25 | 175 | 40-55 |
| JSB5500S | 4135 | 3400 | 180-220 | 220-300 | 200-250 | 1.25 | 185 | 50-60 |
| JSB6000S | 4650 | 3420 | 180-220 | 230-320 | 180-200 | 1.25 | 190 | 55-65 |
| JSB6500S | 5860 | 3700 | 190-230 | 360-450 | 120-200 | 1.25 | 210 | 65-100 |

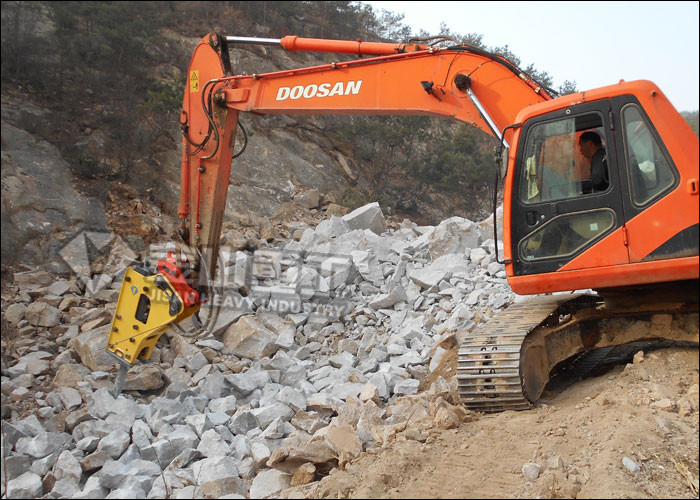

Application
1. Mining: Mountains, mining, crushing, secondary crushing
2. Metallurgy, slag cleaning, ladle furnace demolition, demolition
equipment foundation body dissatisfied
3. Railway, tunnel,bridge, mountain down.
4. Highway:highway repair, cement pavement broken, foundation
excavation.
5. Municipal gardens, concrete crushing, gas engineering
construction, the transformation of the old city.
6. Building: the old building demolition, reinforced concrete
broken.
7. The ship hull in mussels ,derusting.
8. Other: ice breaking, breaking the permaforst and vibrating sand.
Company Introduction
Jisan Heavy Industry Ltd. is a leading manufacturer of hydraulic
breaker and attachments, widely used in the construction,
demolition, mining industries and special project. At present, the
capacities of research and development, and manufacturing and the
level of quality control stand at the forefront of the industry
regarding comprehensive strength.
After nearly ten years of development, we process a professional
and experienced technical research team, We have over 300
employees, includes over 40 engineers, production workshop cover
30,000 square meters. With advanced testing equipments, leading
R&D capability, and LPS production line, the company has passed
authentication of BV, SGS, and CE certification. Quality is the
life of enterprise! Grasp the quality source in all the details.
