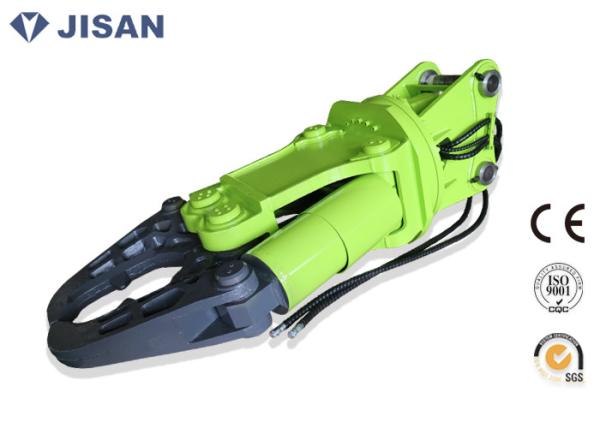

Demolition Machine Excavator Concrete Crusher Hydraulic Stone
Crushing Equipment
Features
1. One piece high strength casting jaw
2. Replaceable turnable blades
3. 360 degree hydraulic rotation motor equipped with dual relief
valve
4. Interchangeable jaws deliver outstanding productivity in variety
of applications
5. Twin pins and large bore twin cylinder gives wide jaw opening,
exceptional crushing force and balance to the carrier
6. A speed up valve provides fast opening and closing times
7. Excavator concrete crusher attachments will enable your
excavator to break up concrete slabs, foundations, footers and
other demanding tasks.
Parameter
| Item/Model | Unit | JS10V | JS15V | JS20V | JS25V | JS30V |
| Suitable Excavator | T | 6-9 | 15 | 18-24 | 35 | 45 |
| Weight | kg | 1250 | 1580 | 2100 | 2750 | 5350 |
| Opening | mm | 750 | 890 | 980 | 1100 | 1400 |
| Blade Length | mm | 140 | 160 | 200 | 240 | 300 |
| Height | mm | 1620 | 2100 | 2280 | 2450 | 2850 |
| Width | mm | 1120 | 1280 | 1450 | 1720 | 2350 |
| Crushing Force | metric ton | 45 | 58 | 70 | 85 | 95 |
| Cutting Force | metric ton | 90 | 115 | 130 | 165 | 260 |
| Rated Pressure | bar | 300 | 320 | 320 | 320 | 320 |
| Rated Flow | Lpm | 180 | 230 | 240 | 260 | 380 |
| Working Pressure | bar | 260 | 280 | 300 | 300 | 300 |
| Cycle Time | Open | sec | 1.8 | 2.1 | 2.9 | 3.4 | 4.3 |
| Close | sec | 1.7 | 2.3 | 2.7 | 4.1 | 5.5 |
Product Inspection
1.Every Product will pass through ring upon ring of quality
inspection before delivery to our customer.
2.We will do impact test for every product before delivery.
Packing & Delivery
Package
Inner is stretch film, outside is export wooden case or as
customer’s request
Delivery
1. Delivery time: Usually 5-7days (1-5sets) after down payment.
2. We can arrange ocean or air transportation according to your
request from any port of China.
