Gas System SK210 Parts hydraulic concrete breaker for Kobelco Attachment excavator

    Buy cheap Gas System SK210 Parts hydraulic concrete breaker for Kobelco Attachment excavator from wholesalers

    Buy cheap Gas System SK210 Parts hydraulic concrete breaker for Kobelco Attachment excavator from wholesalers
    • Buy cheap Gas System SK210 Parts hydraulic concrete breaker for Kobelco Attachment excavator from wholesalers
    • Buy cheap Gas System SK210 Parts hydraulic concrete breaker for Kobelco Attachment excavator from wholesalers
    • Buy cheap Gas System SK210 Parts hydraulic concrete breaker for Kobelco Attachment excavator from wholesalers

    Gas System SK210 Parts hydraulic concrete breaker for Kobelco Attachment excavator

    Ask Lasest Price
    Brand Name : JISAN
    Model Number : JSB1900
    Certification : CE, ISO9001
    Price : Negotiation ( EXW , FOB or CIF price )
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 2000 Sets per year
    Delivery Time : 5-7 Workdays
    • Product Details
    • Company Profile

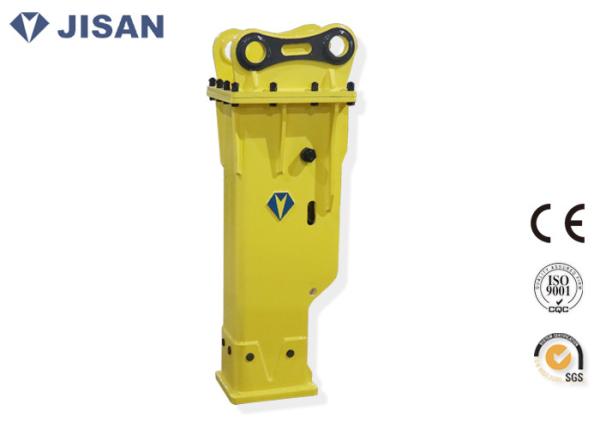

    Gas System SK210 Parts hydraulic concrete breaker for Kobelco Attachment excavator


    Kobelco Attachment Excavator Rock Breaker Hydraulic Hammer For SK200 SK210


    Introduction


    Hydraulic rock breaker is powered by an excavator or loader pump provides pressure oil, it can dig a fundamental role in building a more efficient clean up floating rock crevice in the rocks and soil. Optional hydraulic hammer excavator model is based on the principle of the operating environment to choose the most suitable hydraulic rock breaker
    Hydraulic breaker has become an important tool for the job, it was installed in the hydraulic breaker backhoe loaders (also known as two busy) or wheel loader for crushing operations.


    Description


    1. Selected raw material – high quality heavy duty wear resistant steel
    2. Hydraulic-gas system, increase stability
    3. High-quality and durable wear parts
    4. Advanced manufacturing facilities, introduced from Korea
    5. High energy and impact frequency (high performance)
    6. High-performance optimized hydraulic unit
    7. Low maintenance, less breakdown, long using life
    8. Fully enclosed housing with robust structure


    Gas System SK210 Parts hydraulic concrete breaker for Kobelco Attachment excavator


    Specification


    ModelUnitJSB200JSB300JSB400JSB600JSB800JSB900JSB1600
    WeightKg20027033045068010002000
    LengthMm1344142015901895210124012822
    PressureKg/m²80-11090-120110-140120-150130-160150-170160-180
    FlowL/Min20-3025-5040-7050-9060-10080-110100-150
    RateBpm600-1200550-1000500-900400-800400-800350-700350-600
    HoseInch1/21/21/21/23/43/41
    ChiselMm455368/707585100135
    SuitTon0.8-3.01.0-3.54-76-97-1411-1616-21

    ModelUnitJSB1900JSB2800JSB3500JSB4500JSB5000JSB5500JSB6500
    WeightKg2050280031003950420049007100
    LengthMm2828305232543450370938004430
    PressureKg/m²160-180160-180160-180160-180160-180160-180190-210
    FlowL/Min120-180150-210180-240200-260210-290250-310290-370
    RateBpm350-500300-450300-450250-400200-350250-320200-400
    HoseInch111.251.251.251.251.25
    ChiselMm140150155165175180210
    SuitTon18-2625-3028-4530-4540-5544-7065-100

    Gas System SK210 Parts hydraulic concrete breaker for Kobelco Attachment excavator


    Application


    Excavator rock breaker can be widely used to breaking rock, paving road, building demolition,mining,dismantling engineering and special engineering etc.


    Gas System SK210 Parts hydraulic concrete breaker for Kobelco Attachment excavator


    FAQ


    1. Are you a manufacture?
    Yes,our factory was established in 2009.


    2. What’s the MOQ and payment ?
    MOQ is 1 set.
    T/T, L/C,west union is accepted. Other terms can also be negotiated.


    3. How long is your delivery time?
    Generally it is 3-5 days if the goods are in stock.
    It is 7-15 days if the goods are not in stock, and it's according to quantity.


    4. Can you produce according to customers' design?
    Sure,we are professional manufacturer,OEM is available.


    Jisan Hydraulic Breaker.pdf
