Features

1. Special steel material with high ductility and wear resistance.
2. Driven by motor, utilizing a kind of exciting force produced by reciprocating motion of centrifugal force up and down.
3. Original imported motor, more durable, high swinging speed and frequency.
4. All bearings are originally imported with longer life service.
5. Flexible single chuck, double chuck styles can be designed.

The high frequency vibration generated by the machine body, is transmitted to the pile body through the clamp, so that the soil around the pile body is liquefied and the structure is changed, that reduce friction resistance between the pile body and the soil. Then complete the construction work with the excavator to drive pile in or pull out the soil.

Suitable for concrete square pile	Suitable for photovoltaic barrel pile	Suitable for stretching piles and steel
Suitable for cement round pile and log	Suitable for steel pipe pile	Suitable for curved wave pile

Parameter

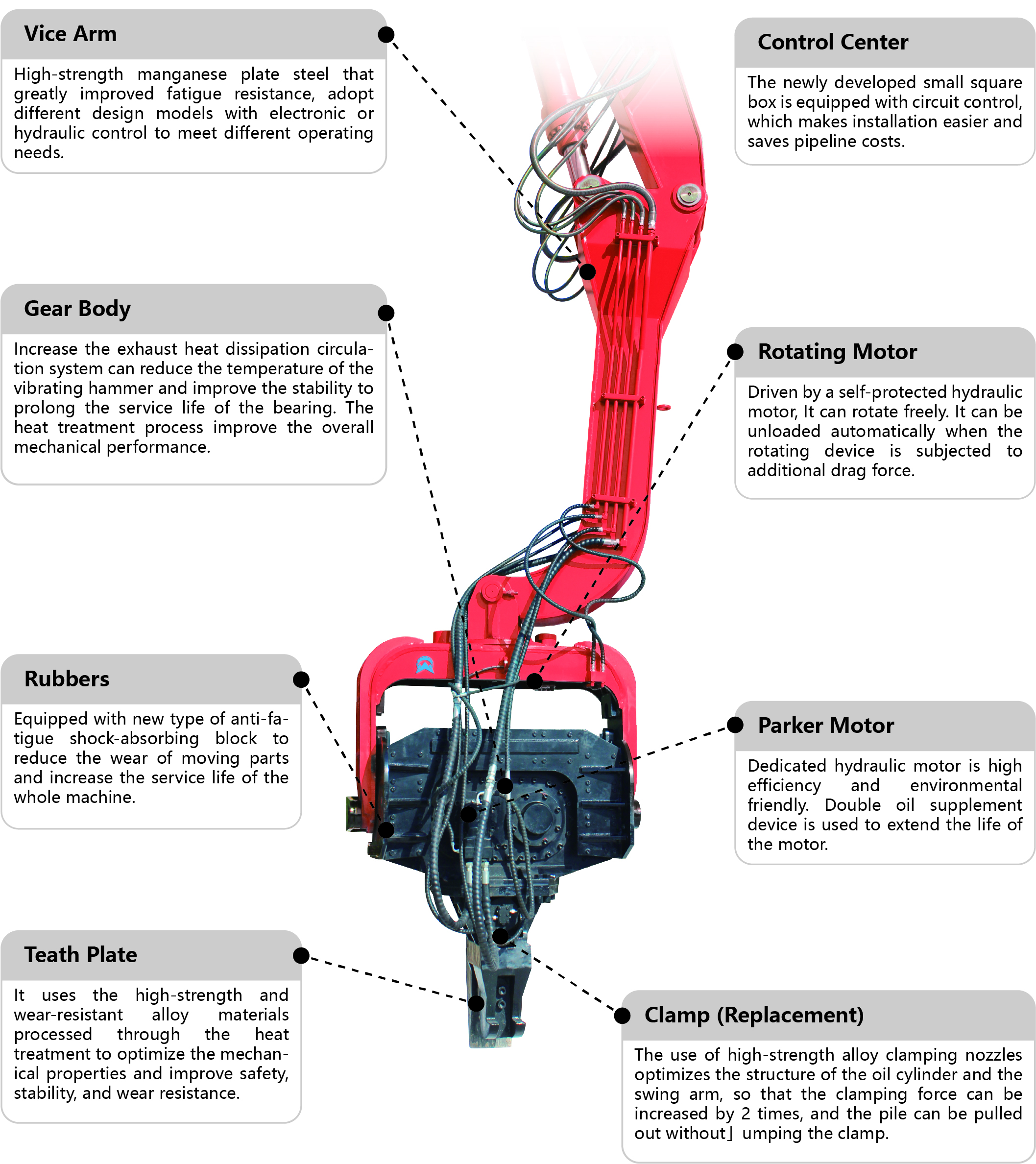

It adopt the control center built-in extension boom or located near to external main control valve to increase the confluence valve, make great use of the hydraulic power to drive the motor and drive the two eccentric shafts to rotate at a high speed, offset the horizontal mutual fo「ce, and increase the vertical direction power to produce high-frequency vibration.

It adopts the same lubrication and oil supply system of the original arm to facilitate the filling of grease and ensure the service life.

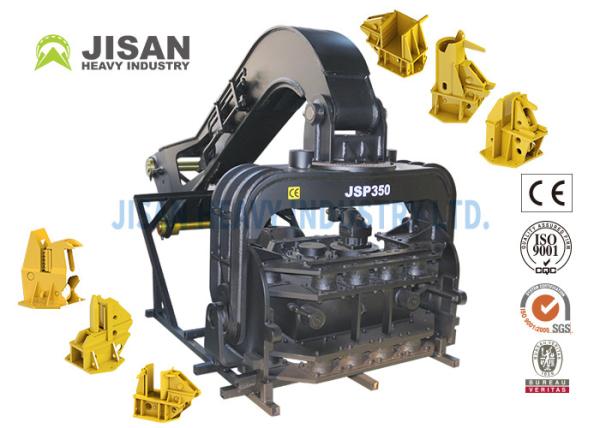

Customized Extension Arm

Applied to pull or pile sheet piles, I-steel piles, cement square pile, cylinder pile and etc.

The egocentricity of the bearing hole is within 0.01mm as the gear box is processed by Doosan high-precision horizontal machining center. The compact structure improves the vibration force effectively.
The box body is matched with high-strength helical gears, close to the center distance, and the transmission torque is large while the steady starting to ensure the stable performance with small impact, vibration and noise.

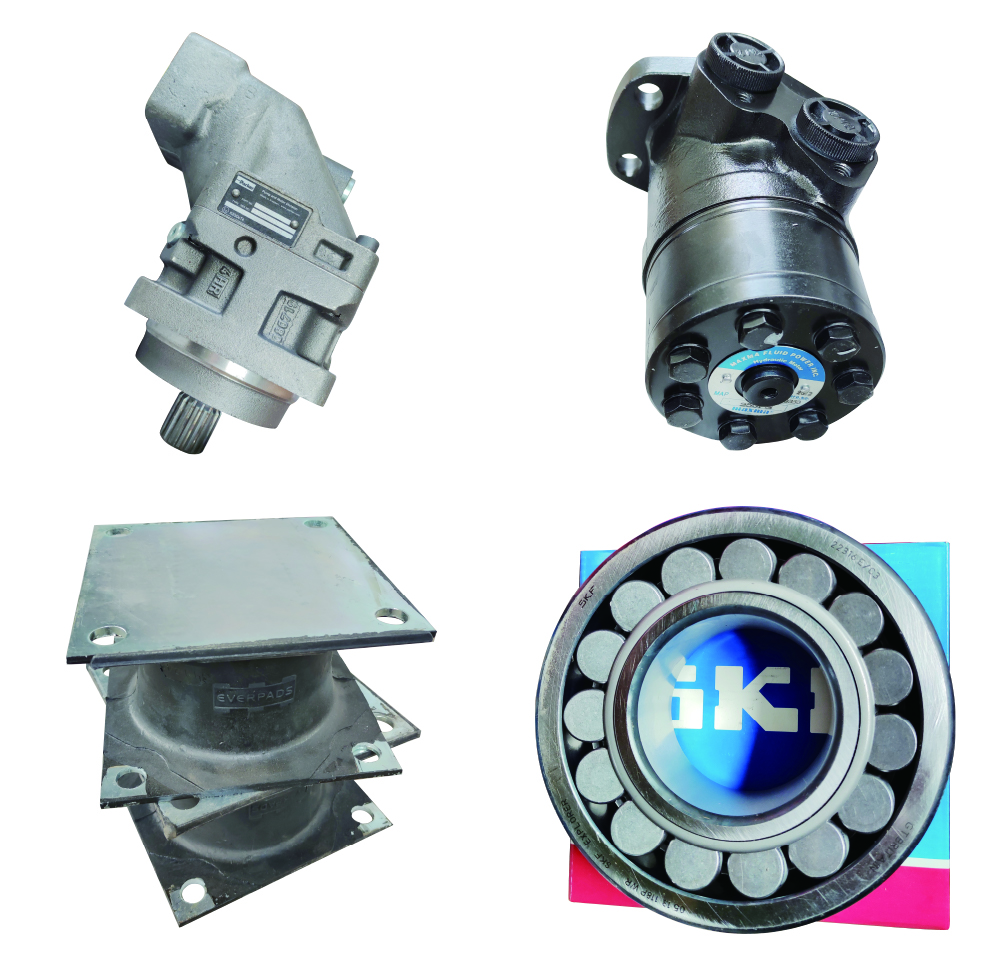

In order to realize a greater use effect, it is repeated scientific experiments by using MAXMA rotating motor, Parker vibration motor, SKF box bearing, EVERPADS shockabsorbing block, 40Mn alloy cast steel chuck, krupp wear-resistant toothed plate.
Adopt two types of pipeline installation services. The four-in-one electronic control integrated control valve is prefabricated inside the attached arm before leaving the factory, which is easier for customers to install. After leave the factory, the four-in-one electronic control integrated control valve is installed on the boom requires professional to make maintenance.
According to the requirements of the working conditions, a wide range of accessories are provided to meet the various construction needs of customers, and the fixtures can be customized and replaced. The long reach boom arm, clamp, hydraulic piping line and other accessories are also supplied.

Application

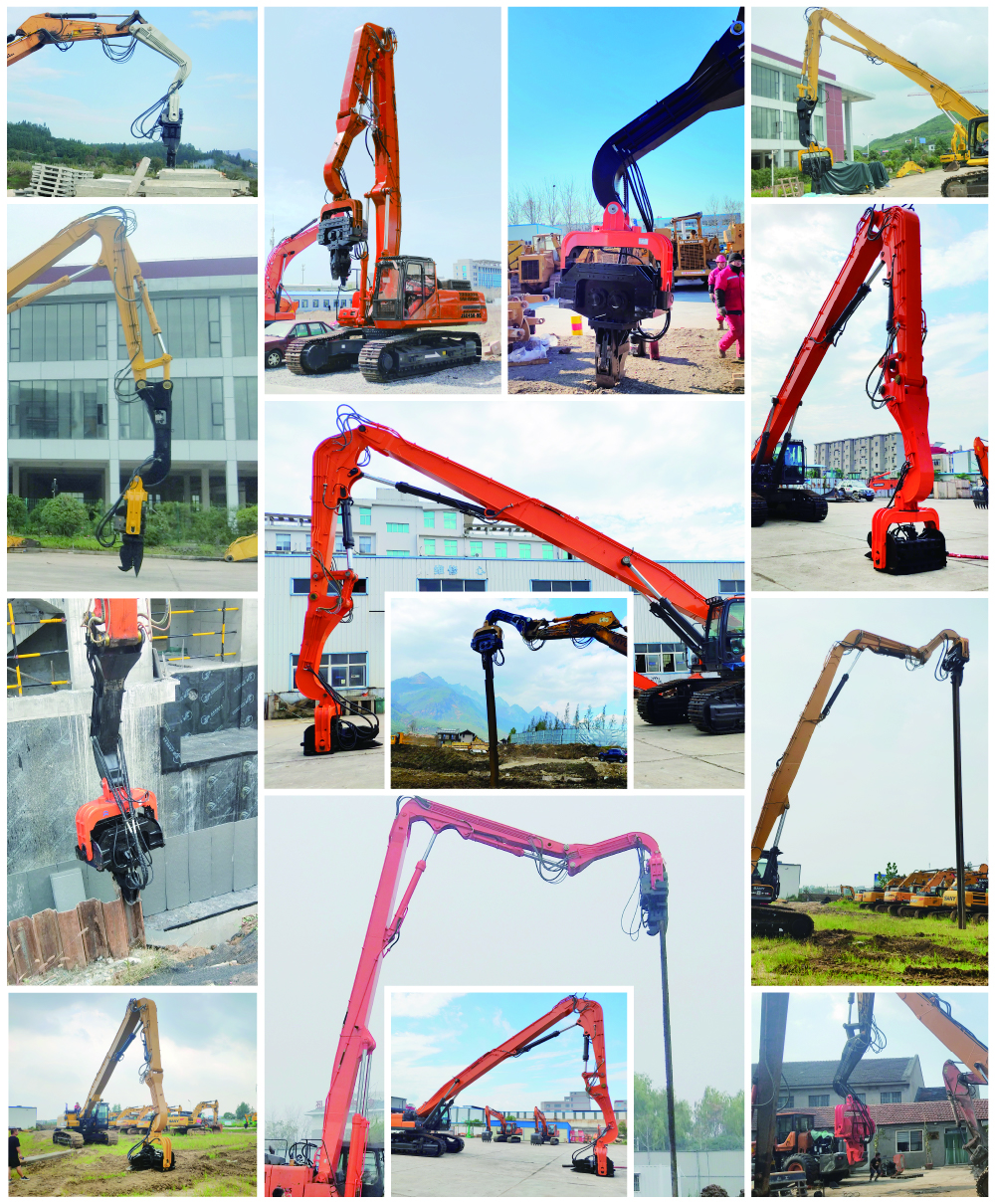

Hydraulic vibratory pile hammer is using vibrating pile sinking to drive or extract piles. It is especially suitable for municipal, bridges,cofferdam,building foundation etc. Applied to pull or pile sheet piles, I-steel piles, cement square pile, cylinder pile and etc.
